John Deere Part no. N26-002992

Internal Snap Ring

Shop rating 4.3, from 4 customer reviews of Agri Lighting
$33.95

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • New Zealand delivery NZ$51.95, free on orders over NZ$500. Delivery and import charges

About this workshop consumable

Internal Snap Ring is a John Deere workshop consumable in the Pins and Clips range.

It belongs to the Trim Clips and Hardware range in Workshop and Consumables and ships from the same Lincolnshire warehouse as our tractor lighting, so it counts towards free delivery to New Zealand on orders over NZ$500.

The Agri Lighting part number is N26-002992, and it replaces or is equivalent to L102097.

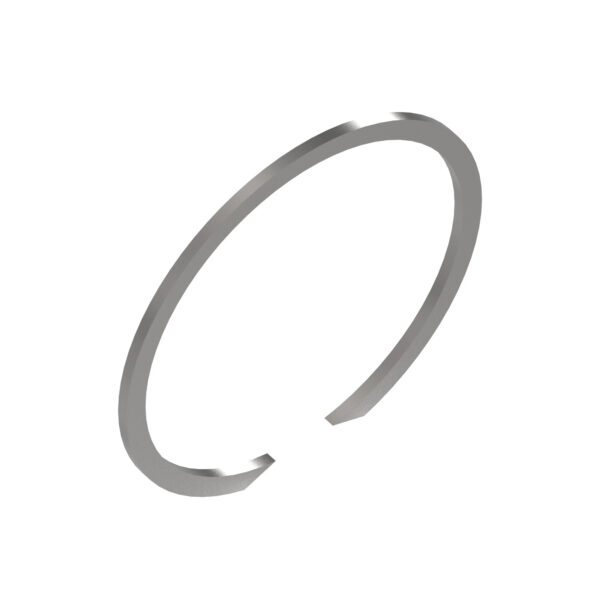

A metal ring which is sprung into an internal or external groove and used as a retainer. Internal Snap Ring designed to securely fit into a groove on the inside of a bore, reducing lateral movement. Key specs: 90 mm (3.54 in) bore diameter, 93.50 mm (3.68 in) groove diameter, and 5 mm (0.2 in) radial width for precise applications. Additional specs: 15 mm (0.59 in) free gap and 2.70 mm (0.11 in) width for optimal performance. Made from high quality general steel for durability and strength. Heat treated finish enhances wear resistance and longevity.

Part numbers

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • L102097
